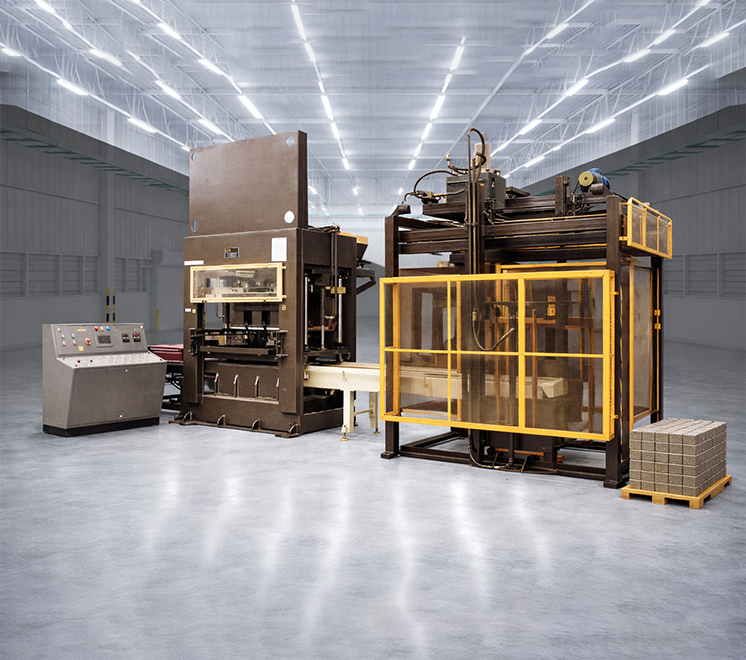

Fully Automatic Auto Stacker Pallet System

Fully-Automatic-Auto-Stacker-Pallet-System
Innovation

Advanced Technology

The Fully Automatic Auto Stacker Pallet System is designed to improve efficiency in modern brick manufacturing. Widely used in Coimbatore, this system supports automated stacking for fly ash bricks, concrete blocks, and pavers, reducing manual labor and increasing productivity. Equipped with advanced PLC controls and a strong hydraulic mechanism, it ensures precise handling and uniform stacking of bricks. Its durable structure and high-speed performance help maintain smooth and continuous production. The system integrates easily with automatic brick making machines and paver production units, making it suitable for industrial-scale operations. Ideal for brick manufacturers and construction businesses, it enhances workflow, improves efficiency, and delivers reliable performance in high-volume brick production environments.

Technical Specification

MODEL

MB 3000

MB 6000

Main pressing cylinder

200mm, Stroke 400mm, Rod 150mm -2 No’s

250mm, Stroke 400mm, Rod 160mm -2 No’s

Pilot Cylinder

70mm, Stroke 400mm, Rod 50mm -1 No’s

100mm, Stroke 400mm, Rod 80mm -1 No’s

Ejector Cylinder

50mm, Stroke 350mm, Rod 50mm -2 No’s

100mm, Stroke 350mm, Rod 80mm -2 No’s

System Pressure

240 Bar

280 Bar

Cylinder Pressure

200 x 2 – 400 Bar Max

200 x 2 – 400 Bar

Hydraulic Pump

Turbo Twin System

Turbo Twin System

Cycle Time

Flyash Bricks – 15 Seconds Concrete Block – 16 to 17 Seconds

Concrete Paver-17 Seconds-Single feeding

Flyash Bricks – 15 to 17 Seconds Concrete Paver Double side Feeding– 20 to 25 Seconds

Concrete block-15 to 20 Seconds

Mould Capacity

Flyash Bricks-15 Sec Concrete Paver-6, 400x200x200

Concrete Block 2?No’s, 400x200x150 – 3 No’s ,400x200x150 – 3 No’s

Flyash Bricks-20, Paver -15, 400x200x200-4No’s,

400x200x150 – 5 No’s ,400x200x100 – 8 No’s

Electric Power

Hydraulic Motor-1.5 H.P, Vibrator 6 H.P, Heat Exchanger-1 H.P,

Hopper vibrator-1/2 H.P, Auto Stacker-6 H,P

Main Hydraulic -25 H.P, Pallet

Pusher-5H.P, Heat Exchanger-1 H.P, Vibrator 10H.P, Hopper Vibratore-1/2 H.P, Chain Conveyor-2 H.P, Agitator-% H.P, Pallet Stacker-7 H.P

Compaction

Vibration / Hydraulic

Vibration / Hydraulic

Operating

PLC

PLC

Pallet Size

800x700x20-1800 No’s

25x1100x20-1500 No’s

Hydraulic Oil

Hydraulic Grade-System 68-450b Liters

Hydraulic Grade-System 68-650b Liters

Pan mixer Requirement

500Kg-1 No’s

500Kg-2 No’s

Color Feeding for paver

Hydraulic Automatic

Hydraulic Automatic
